Copper with Tin Plated Photovoltaic Connector for Energy Storage Solar Applications
Product Description:

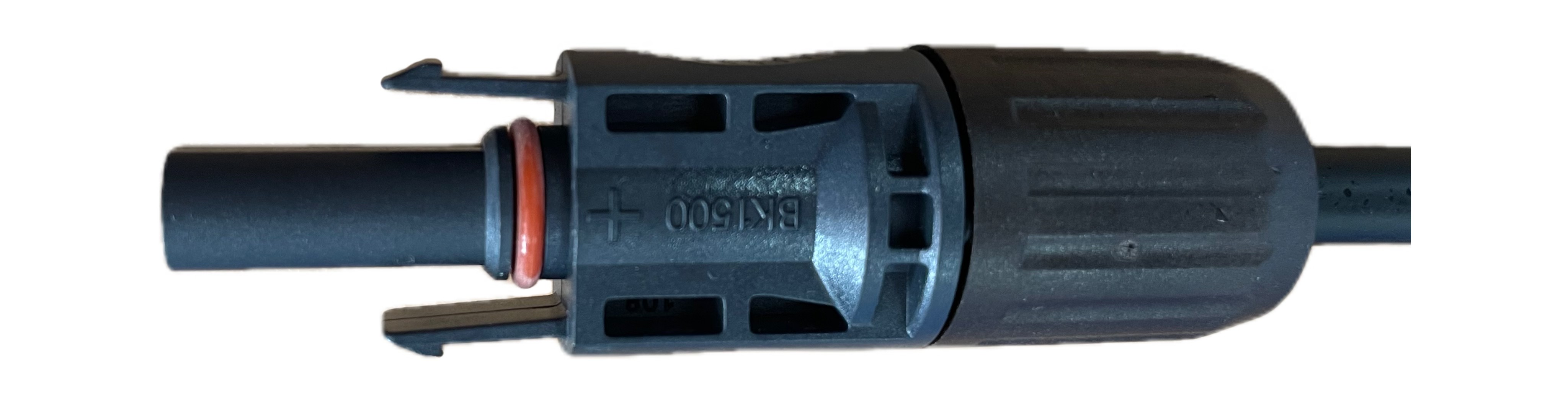

The PV-BK1500V Photovoltaic Connector is suitable for wire sizes of 2.5mm², 4mm², and 6mm², providing flexibility for various installation requirements. With a rated voltage of 1500 VDC, this connector can handle high voltage loads with ease. It also has a high Ip rating of IP65/IP68, making it resistant to dust and water ingress, ensuring its longevity.
This product has a temperature range of -40℃ to +85℃, with some models having a range of -40℃ to +90℃, ensuring its reliability under various weather conditions. The connector has a rated current of either 35A or 39A, depending on the model, making it suitable for high current applications. The insulation material used is of high quality, ensuring the safety of the installation and the longevity of the product.
The BOKANG PV-BK1500V Photovoltaic Connector is suitable for various occasions and scenarios, including residential, commercial, and industrial solar panel installations. It is perfect for use in both on-grid and off-grid systems, providing flexibility for users. The product comes in a carton box packaging, ensuring its safety during transportation. The delivery time is as required, and payment terms are negotiable, providing convenience for customers. The supply ability is also as required, ensuring that customers can get the product when they need it.
Features:
- Product Name: Photovoltaic Connector
- Contact Material: Copper; Tin-plated
- Type: PV Module
- Rated Current: 39A/35A
- Rated Voltage: 1500 VDC
- Flame Rating: V-0; 5VA
- IP68 Rating
- Suitable for Solar Energy Applications
Technical Parameters:
| Technical Parameter | Value |
| Rated Current | 39A/35A |
| Certifications | TUV, UL |
| IP Rating | IP65/IP68 |
| Temperature Range | -40℃ To +85℃; -40℃~+90℃ |
| Wire Size | 2.5mm²,4mm²,6mm² |
| Rated Voltage | 1500 VDC |
| Contact Material | Copper; Tin-plated |
| Insulation Material | PPO/PA |
| Safety Class | ClassⅡ |
