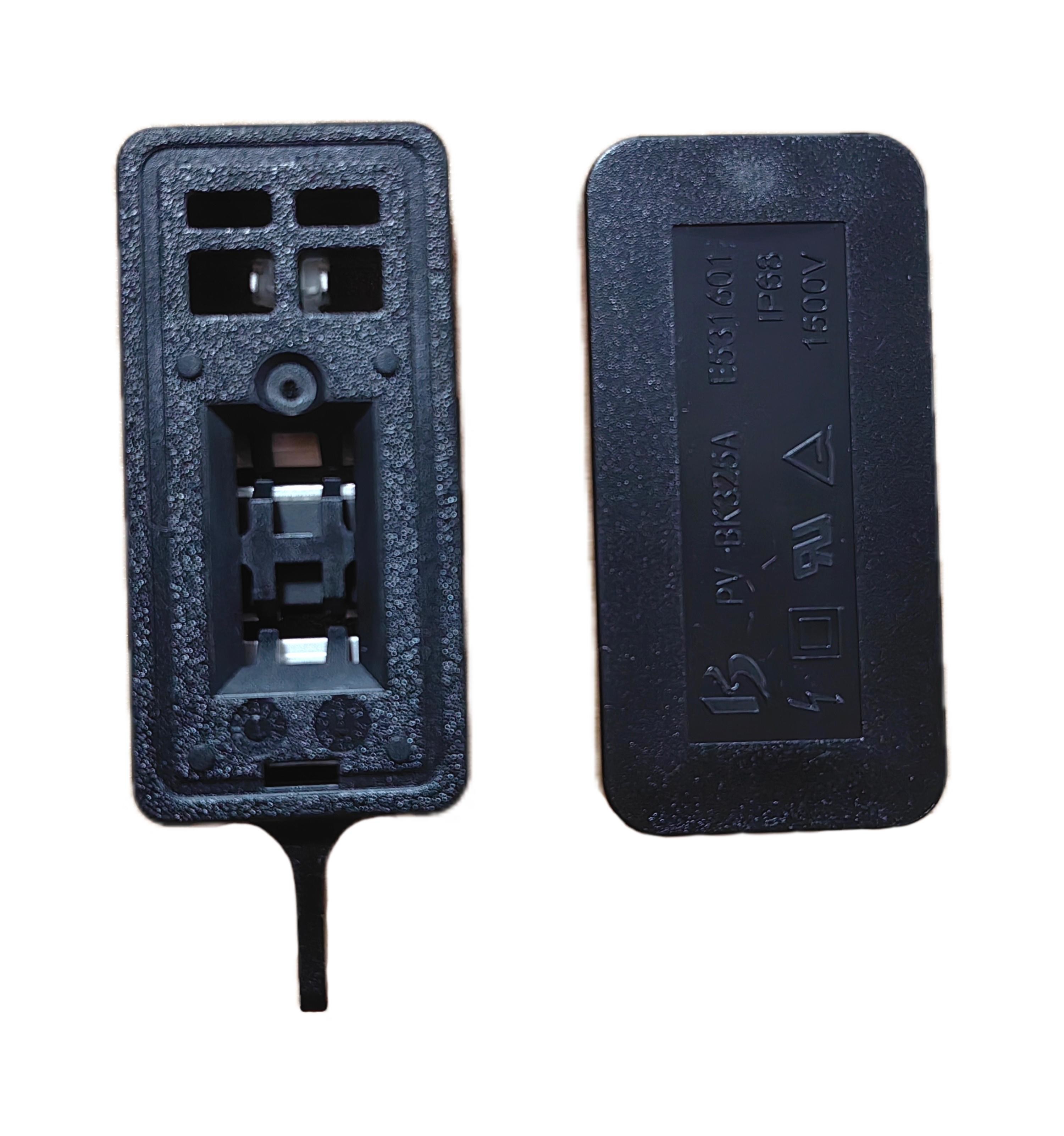

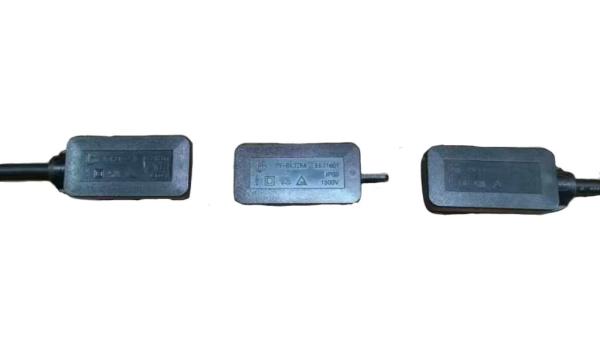

Waterproof Structure Potting Sealant Photovoltaic Junction Box 1500 VDC Flame Rating 5VA UL
Product Description:
The Junction Box is made from high-quality materials and features an insulation material of PPE. This material provides excellent insulation properties and ensures that the product is safe to use in a range of different environments. The Junction Box is also IP65/IP68 rated, which means that it is dust-tight and can withstand water immersion up to a certain depth.
The Junction Box is suitable for use in a wide range of applications, including solar power systems, street lighting, and other industrial and commercial applications. It is available in two different operating temperature ranges, -40℃~+85℃ and -40℃~+90℃.
BOKANG Junction Box features a connector type that is designed to provide a reliable and secure connection for photovoltaic modules. It is available in two different wire sizes, 4mm² (TUV) and 12AWG (UL), which makes it suitable for use with a wide range of different modules. The product is also certified by both TUV and UL, which means that it has been independently tested and verified to meet the highest standards of quality and safety.
The BOKANG PV-BK325A/A-Z is certified by TUV and UL, ensuring that it meets high safety and quality standards. With a flame rating of V-0 (TUV) and 5VA (UL), this product is highly resistant to fire and is designed to provide maximum safety protection for your solar system.
Another application for this product is in the installation of solar batteries. The high-quality insulation material, PPE, provides excellent electrical insulation and thermal stability, ensuring that your solar batteries are protected from damage and are able to operate at peak efficiency.
Features:
- New Energy Photovoltaic Junction Box for Solar Energy
- Wire Size: 4mm² (TUV); 12AWG (UL)
- Adaptable Connector: PVGZX1500/EVO2/MC4
- Rated Voltage: 1500 VDC
- Insulation Material: PPE
- Flame Rating: V-0(TUV); 5VA (UL)
Technical Parameters:
| Item | Descripption |
| Rated Voltage | 1500 VDC |
| Safety Class | Class II |
| Waterproof Structure | Potting Sealant |
| Flame Rating | V-0(TUV); 5VA (UL) |
| Insulation Material | PPE |
| Adaptable Connector | PVGZX1500/EVO2/MC4 |
| Contact Material | Copper With Tin-plated |
| Operating Temperature | -40℃~+85℃; -40℃~+90℃ |
| Certifications | TUV, UL |
| Wire Size | 4mm² (TUV); 12AWG (UL) |
