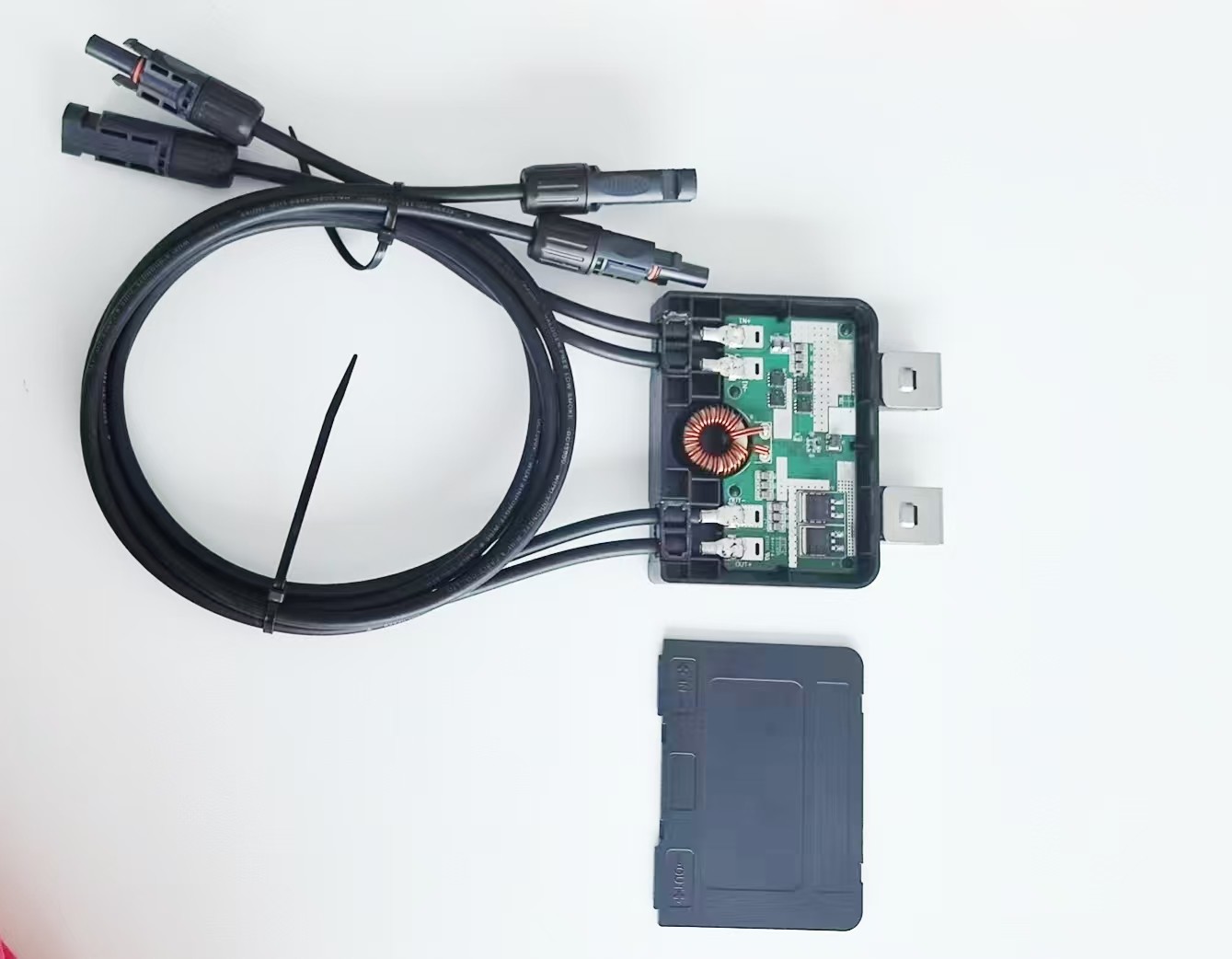

TUV/UL Certified 62V PV Optimizer with Overcurrent/Overtemperature Protections
Product Description:
The PV-BK1M module optimizer has several protection features, including overcurrent and overtemperature protection values, which ensure that the module performs optimally even in harsh conditions. The maximum system voltage is 1500 VDC, and the operating temperature range is from -40°C to +65°C, making it suitable for use in a wide range of climates and environments.
With a peak conversion efficiency of 99.2%, this module optimizer is an excellent choice for those in the solar photovoltaic industry. It can handle a maximum input power of 800W, making it suitable for use in a variety of applications.
One of the most important features of the PV Module Optimizer is its Working Voltage, which ensures that each panel operates at the optimal voltage for maximum efficiency. It also has an MPPT Voltage Range that allows it to find and track the maximum power point for each panel, which further improves overall system efficiency.
The PV Module Optimizer is also designed to withstand harsh outdoor conditions, thanks to its IP65/IP68 rating. This means that it is dust-tight, water-resistant, and able to withstand immersion in water for extended periods. This makes it an ideal choice for solar panel systems that are exposed to the elements and need to operate reliably in all conditions.
In summary, the PV Module Optimizer is a high-performance device that enhances the efficiency of solar panel systems. Its compact design, maximum input current, and ability to work with a wide range of input voltages and wire gauges make it a versatile option for solar panel systems of various sizes and configurations. Its Working Voltage and MPPT Voltage Range ensure that each panel operates at its maximum potential, while its IP65/IP68 rating ensures reliable operation in harsh outdoor conditions.
Features:
- Certification: TUV/UL
- Maximum Input Current: 17A
- Peak Conversion Efficiency: 99.2%
- Dimensions: 107mm X 105mm X 22mm
- Weight: 0.5kg
- Certifications: UL, TUV
- Designed Life: 25 Years
Technical Parameters:
| Item | Description |
| Wire Gauge | 4mm2 |
| Protection Features | Overcurrent, Overtemperature |
| Designed Life | 25 Years |
| Maximum Input Current | 17A |
| Peak Conversion Efficiency | 99.2% |
| Operating Temperature Range | -40°C To +65°C |
| Dimensions | 107mm X 105mm X 22mm |
| Certifications | UL, TUV |
| Weight | 0.5kg |
| Maximum System Voltage | 1500 VDC |
